820 Ω resistor color code

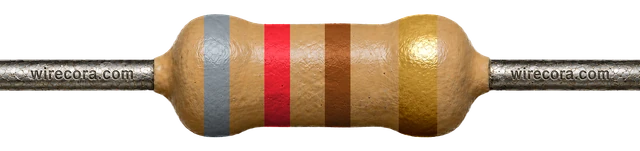

An 820 Ω resistor is Gray, Red, Brown, Gold: 82 × 10 = 820 Ω, ±5%, so anything from 779 to 861 Ω is in spec.
82 × 10 = 820 Ω
5-band version

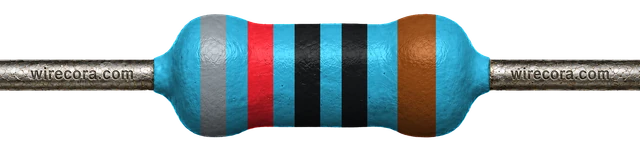

Gray · Red · Black · Black · Brown = 820 Ω ±1%
820 × 1 = 820 Ω. Range 811.8–828.2 Ω (±1%).
Open the 5-band version
Where you'll meet it
An LED on a 12 V battery
A common indicator light in 12 V projects: a 12 V battery, a red LED and one resistor. The 820 Ω resistor sits between the battery's plus and the LED, and sets the current.
I = (12 V − 2.0 V) / 820 Ω ≈ 12.2 mA
That is bright, and it leaves room under the 20 mA that most standard LEDs are rated for.
A blue or white LED drops about 3.0 V, so the same resistor gives (12 V − 3.0 V) / 820 Ω ≈ 11 mA.
The resistor turns (12.2 mA)² × 820 Ω ≈ 0.122 W into heat. That is about half of what a ¼ W (0.25 W) part can take, so it runs warm; a ½ W part runs cooler.
2.0 V and 20 mA are typical figures for a standard 5 mm red LED. Check your LED's datasheet. A full 12 V lead-acid battery reads about 12.7 V, and in a running car the supply sits near 14.4 V: then (14.4 V − 2.0 V) / 820 Ω ≈ 15.1 mA flows, still under 20 mA, but the resistor runs hotter, so use a ½ W part there. The LED's longer leg goes toward the battery's plus. If it stays dark, turn it round: 12 V backwards is more than the 5 V most LEDs are rated to block.
On SMD parts
Look for 821 or 8200
- 821821 = 82 × 10¹ = 820 Ω (3-digit code).
- 82008200 = 820 × 10⁰ = 820 Ω (4-digit code, usually ±1% parts).
There is no EIA-96 code, because 820 Ω is not an E96 value (the nearest E96 values are 806 Ω and 825 Ω). A part marked 820 is 82 Ω, not 820 Ω.
Don't mix it up
Only band 3 changes
These four share Gray, Red and Gold. Brown (×10) is 820 Ω; black is ten times less and red ten times more.

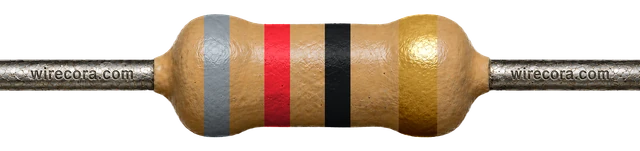

82 Ωband 3 black- 820 Ωband 3 brownThis page
8.2 kΩband 3 red
82 kΩband 3 orange
Check it with a meter
Read 779–861 Ω
- Take the resistor out of the circuit.
- Set the meter to Ω, range 2 kΩ (or auto).
- Touch one probe to each lead. Keep your fingers off the metal: your body is a resistor too.
- Anything from 779 to 861 Ω is a good ±5% part. A 5-band ±1% part should read 811.8 to 828.2 Ω.
A meter has a small error of its own, so a reading a hair outside the range does not prove the part is bad. Measure again with firm contact before you swap it.
Spot it
Can you find 820 Ω in a pile?
Practise reading it, and its look-alikes, in the resistor challenge.
Try the resistor challenge820 Ω resistor FAQ
What resistor do I need for an LED on 12 V?
820 Ω is a common choice. With a typical red LED (about 2.0 V) it gives (12 V − 2.0 V) / 820 Ω ≈ 12.2 mA, under the 20 mA most standard LEDs are rated for. The resistor turns about 0.122 W into heat, so a ¼ W part works and a ½ W part stays cooler.
What is the SMD code for an 820 Ω resistor?
821 on 3-digit parts (82 × 10¹) and 8200 on 4-digit parts (820 × 10⁰). There is no EIA-96 code, because 820 Ω is not an E96 value.
What are the 5-band colors for 820 Ω?
Gray, Red, Black, Black, Brown: 820 × 1 = 820 Ω with ±1% tolerance, so 811.8 to 828.2 Ω.
What does 820R mean?
820R is another way to write 820 Ω. The R stands for ohms and sits where the decimal point would be, so 8R2 means 8.2 Ω. With nothing after the R, 820R is exactly 820 Ω.
