330 Ω resistor color code

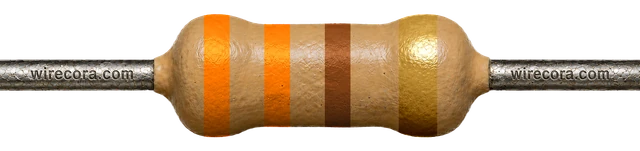

A 330 Ω resistor is Orange, Orange, Brown, Gold: 33 × 10 = 330 Ω, ±5%, so anything from 313.5 to 346.5 Ω is in spec.
33 × 10 = 330 Ω
5-band version

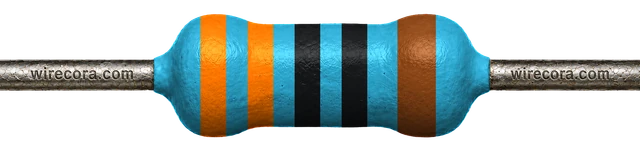

Orange · Orange · Black · Black · Brown = 330 Ω ±1%
330 × 1 = 330 Ω. Range 326.7–333.3 Ω (±1%).
Open the 5-band version
Where you'll meet it
An LED on a Raspberry Pi GPIO pin
Raspberry Pi pins work at 3.3 V and are weaker than Arduino pins, so an LED always gets a resistor. Here GPIO17 drives a red LED through a 330 Ω resistor to ground.
I = (3.3 V − 2.0 V) / 330 Ω ≈ 3.9 mA
That is enough for a clear glow, and well under the 16 mA that one Raspberry Pi pin should give. All the GPIO pins together should stay under 50 mA.
On a 5 V Arduino pin the same resistor gives (5 V − 2.0 V) / 330 Ω ≈ 9.1 mA: brighter, and still safe.
The resistor turns (3.9 mA)² × 330 Ω ≈ 0.005 W into heat, so any ¼ W (0.25 W) part is fine.
2.0 V is a typical red LED forward voltage. Check your LED's datasheet. The pin voltage also sags a little under load, so the real current is slightly lower. Blue and white LEDs drop about 3.0 to 3.3 V, so a 3.3 V pin can push at most (3.3 V − 3.0 V) / 330 Ω ≈ 0.9 mA through one: it looks dim or stays dark.
On SMD parts
Look for 331 or 3300
- 331331 = 33 × 10¹ = 330 Ω (3-digit code).
- 33003300 = 330 × 10⁰ = 330 Ω (4-digit code, usually ±1% parts).
There is no EIA-96 code, because 330 Ω is not an E96 value (the nearest E96 values are 324 Ω and 332 Ω). A part marked 330 is 33 Ω, not 330 Ω.
Don't mix it up
Only band 3 changes

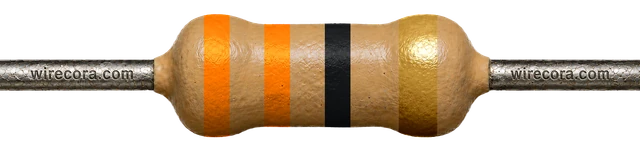

These four share Orange, Orange and Gold. Brown (×10) is 330 Ω; black is ten times less and red ten times more.
33 Ωband 3 black- 330 Ωband 3 brownThis page
3.3 kΩband 3 red
33 kΩband 3 orange
Check it with a meter
Read 313.5–346.5 Ω
- Take the resistor out of the circuit.
- Set the meter to Ω, range 2 kΩ (or auto).
- Touch one probe to each lead. Keep your fingers off the metal: your body is a resistor too.
- Anything from 313.5 to 346.5 Ω is a good ±5% part. A 5-band ±1% part should read 326.7 to 333.3 Ω.
A meter has a small error of its own, so a reading a hair outside the range does not prove the part is bad. Measure again with firm contact before you swap it.
Spot it
Can you find 330 Ω in a pile?
Practise reading it, and its look-alikes, in the resistor challenge.
Try the resistor challenge330 Ω resistor FAQ
Why do Raspberry Pi tutorials use a 330 Ω resistor for an LED?
A Raspberry Pi pin gives 3.3 V and should supply no more than 16 mA. With a typical red LED (about 2.0 V), a 330 Ω resistor sets (3.3 V − 2.0 V) / 330 Ω ≈ 3.9 mA: easy to see and gentle on the pin. On a 5 V Arduino the same part gives about 9.1 mA, so it works there too.
What is the SMD code for a 330 Ω resistor?
331 on 3-digit parts (33 × 10¹) and 3300 on 4-digit parts (330 × 10⁰). There is no EIA-96 code, because 330 Ω is not an E96 value.
What are the 5-band colors for 330 Ω?
Orange, Orange, Black, Black, Brown: 330 × 1 = 330 Ω with ±1% tolerance, so 326.7 to 333.3 Ω.
What does 330R mean?
330R is another way to write 330 Ω. The R stands for ohms and sits where the decimal point would be, so 4R7 means 4.7 Ω. With nothing after the R, 330R is exactly 330 Ω.
